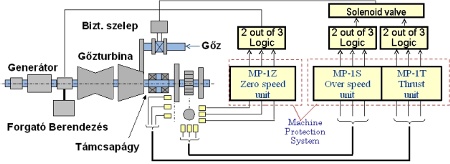

The MP series machine protection system is designed for critical machines such as turbines, and trip output can be used for urgent stopping of the turbine to protect it from damage caused by overspeed rotation or abnormal shaft thrust position. Unit which outputs zero-speed signal is also available (MP-1 only). The MP-2S overspeed unit is designed in accordance with API 670 4th edition.
- There are three types of units : Overspeed, Zerospeed and Thrust
- Design in consideration of safety by the use of duplex power supply (Redundancy)
- One system consisting of three units (corresponding to 2 out of 3)
- Fast response speed (within 30 from overspeed detection to contact output).
- Capable of monitoring multiple parameters
- Overspeed
- Zero Speed
- Thrust
- API-670 Compliant
- Magnetic or Eddy-current inputs
- Redundant Power Supplies
- Front-panel Programmable
- Built-in Signal Generator for testing
- Key & software-protected from tampering
- Typical Applications: Primarily Steam Turbines
